AQUA-BIOFILTRU
WWTP can be used to treat wastewater from new and existing
buildings. AQUA-BIOFILTRU WWTP does not use electricity, air
blower or automation panel. As a result, AQUA-BIOFILTRU does not
and has no problems and associated costs of traditional
wwtp. For AQUA-BIOFILTRU WWTP made does not use
electricity savings of 100 EURO per year. Since no moving
parts, AQUA-BIOFILTRU wastewaste treatment plant requires
minimum maintenance compared to other treatment plants. This can
lead to savings of up to 240 EURO per year. The lack of moving
parts, means that there is a need for parts and labor needed to
replace them. Also the costs of accidental damage there. The
other wwtp are required to add treatment or disposal of surplus
sludge, which costs up to 200 EURO per year. Dispose of excess
sludge from AQUA-BIOFILTRU can be done in 4-5 years. Total
economy can rise up to 500 EURO per year.
AQUA-BIOFILTRU
WWTP

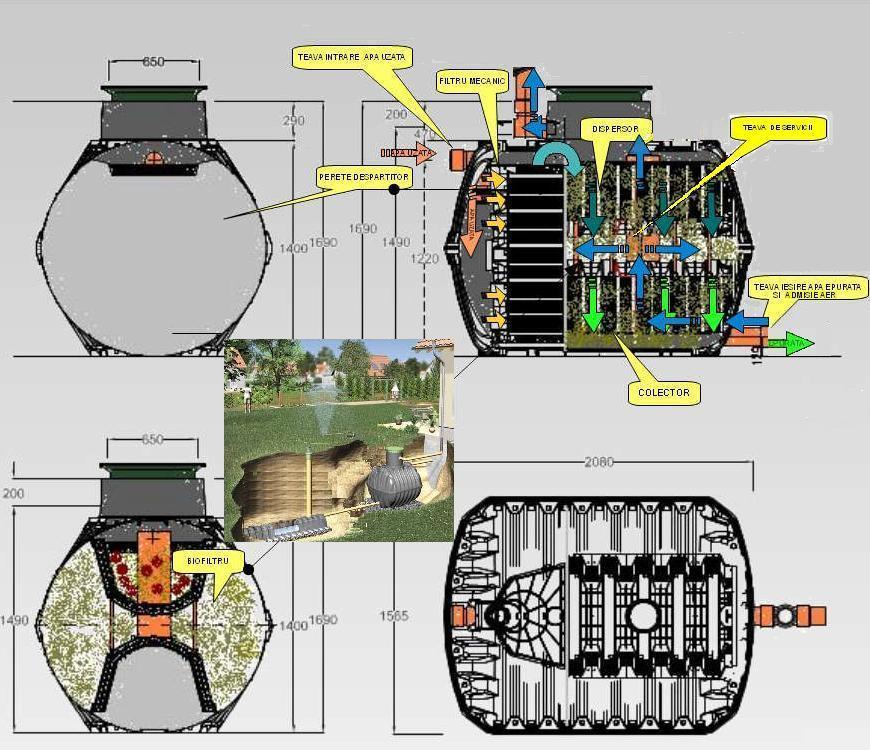

Wastewater
first enters into a mechanical filter that separates solids from
the influent liquid. Here is anaerobically digested a large
amount of solid, non-biodegradable waste emptying, and requires
less than five years. Then treated liquid then enter inside the
lens AQUA-BIOFILTRU container containing a mixture of buildings
with stone and fiber air passages. Then the outer container
through the nozzles to irrigate AQUA- BIOFILTRU, which contains a
mixture of mineral fibers stone granules. AQUA-BIOFILTRU are in
constant contact with air which is absorbed through the exhaust
pipe water purified and pumped into a natural 'chimney''for
effluent treatment in exactly the same way as nature in soils
treated effluent artificial culture. Bacteria grow on the fibers,
and granular bodies, feeding on the organic matter, water
cleaned, which is collected in a receiver and evicted .. The
final effluent can be discharged into a percolation area / valley
or watercourse. Conclusions The AQUA-BIOFILTRU WWTP save
more than 500 EURO per year. The following tables provide a
comparison between AQUA-BIOFILTRU and other WWTP S. As can be
seen, the benefits of installing AQUA- BIOFILTRU are:
WWTP
SBR
Aeration CONTINUE
AQUA-BIOFILTRU
Electrical
Power Consumption
YES
YES
NO
Excess
sludge discharge interval -YEARS
1
3
5
Makes
noise
YES
YES
NO
You
can use the full range of detergents
NO
NO
YES
Expensive
spare parts
YES
YES
NO
Immediate
entry into full throttle
NO
NO
YES
Supports
variable loads better
YES
SOME
NO
YES
High
costs of maintenance
YES
YES
NO
Warranty
- years
2
3
15
Nota
: Statiile de epurare pentru 4 locuitori sunt in faza de testare
prototip
